TIARA GLAZING SYSTEM
Tiara 10
Single Glazed Balcony System
Tiara glazing system is a sliding folding system. The panels slide on the rails with the help of the top and bottom rollers. All the panels can be folded and stacked to one side. The opening width is extensive and the panels will be stacked to both sides.
Tiara 10 - Technical Specifications
- Type of glass:
Single Tempered Glass
Thickness of glass: 10 mm - Material: Aluminium
Carrying system: 4+4 rollers (on the top and on the bottom for each panel)
- Carrying rollers: 100 % stainless, 38mm in diameter
- Panel Min/Max Width: 20 /80 cm
- Panel Max. Height: 240-260 cm
STANDOUT FEATURES OF THE TIARA 10

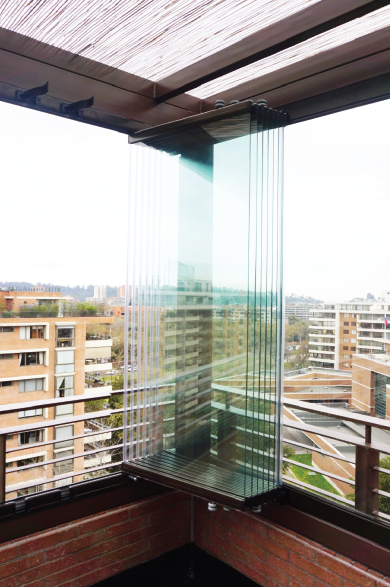

Pillarless design which can go around corners.

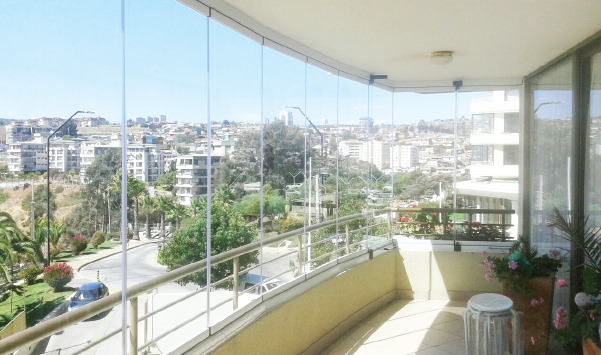

Suits curved areas as well as straight applications.
Low profile threshold track available for trafficable areas
Tested in Europe in accordance with ISO 9001 for:
* Air Permeability
* Impact Resistance
* Water Tightness
* Wind Resistance Testing
Stainless steel hardware and components.
Designed to carry panels of upto 800mm in width.
Patented and engineered rollers provide ease of operation.
Add value to your home and use your outdoor area
year round.
How It Works
The Tiara glazing system is a patented and tested design where each panel operates using 4 specifically engineered rollers in both the top and bottom. When the panels are open the panels slide back and neatly stack in the designated position. The Tiara system can manouvre around corners with ease, leaving you the greatest panoramic view from your balcony. Tiara is also available with a passage threshold for terraces and commercial applications such as restaurants and outdoor dining areas.
Tiara Twin
Double Glazed Balcony System
Albert Genau has the perfect solution to keep you warm all winter long! Our system provides heat insulation for the area of the balcony.
All accessories are also under an anti-corrosion warranty for 10 years. For added security, an espagnolette locking system is used.
Our Tiara Systems are commonly installed in:
- Awnings
- Pergolas
- Cafes
- Restaurants
- Commercial Centres
- Terraces
- Verandas
- Pools
Tiara Twin - Technical Specifications
- Type of glass:
Heat Insulated, Double Glass
Thickness of glass: 4+20+4 mm - Material:
Aluminium
Carrying system: 4+4 rollers (on the top and on the bottom for each panel)
- Carrying rollers: 100 % stainless , 38mm in diameter
- Panel Min/Max Width: 20 /80 cm
- Panel Max. Height: 280 cm
